Terminal blocks
Suppliers: Helag, Körner
- Wide range in multiple sizes and designs
- Robust construction using polyamide 6.6 and tin-plated brass
- Clear and professional labeling that simplifies installation

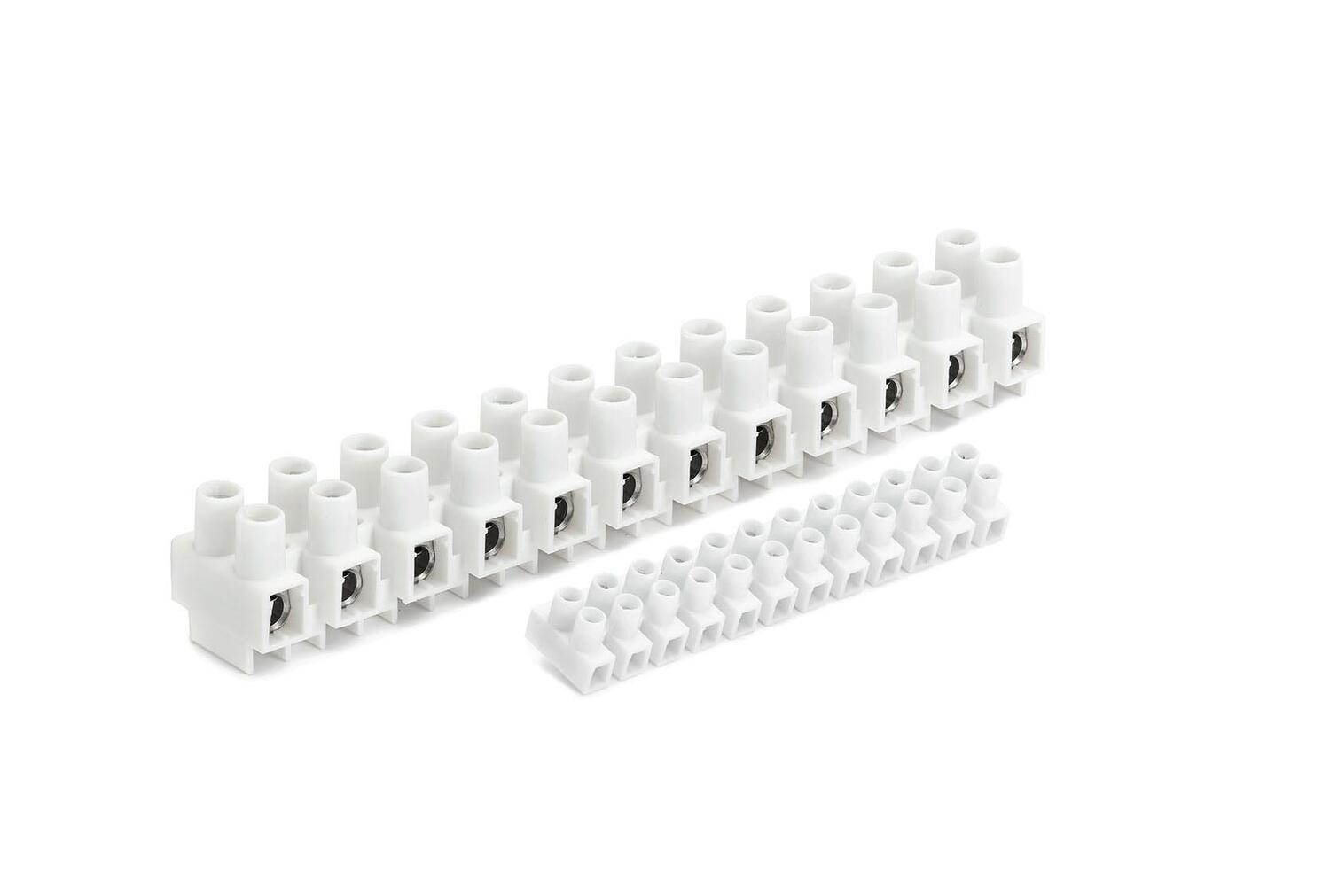

We offer a wide range of terminal blocks in various sizes
The terminal blocks have the insulation material polyamide 6.6 as standard, as well as inserts made of tinned brass. They are available with a wire guard or barrier. The insulation material is self-extinguishing according to UL94 V-0. As an option for high-temperature applications, we also provide insulation material made of Stanyl or Zytel.

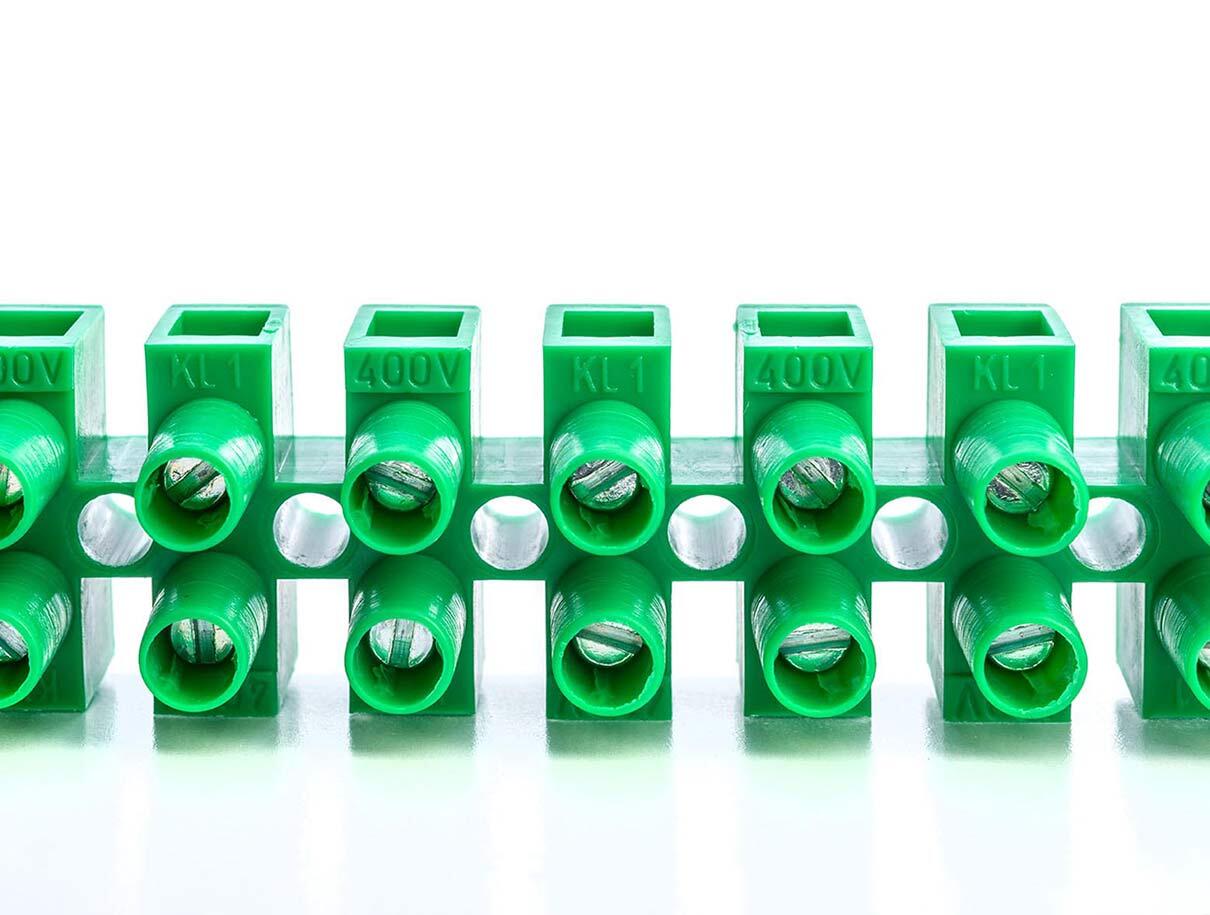

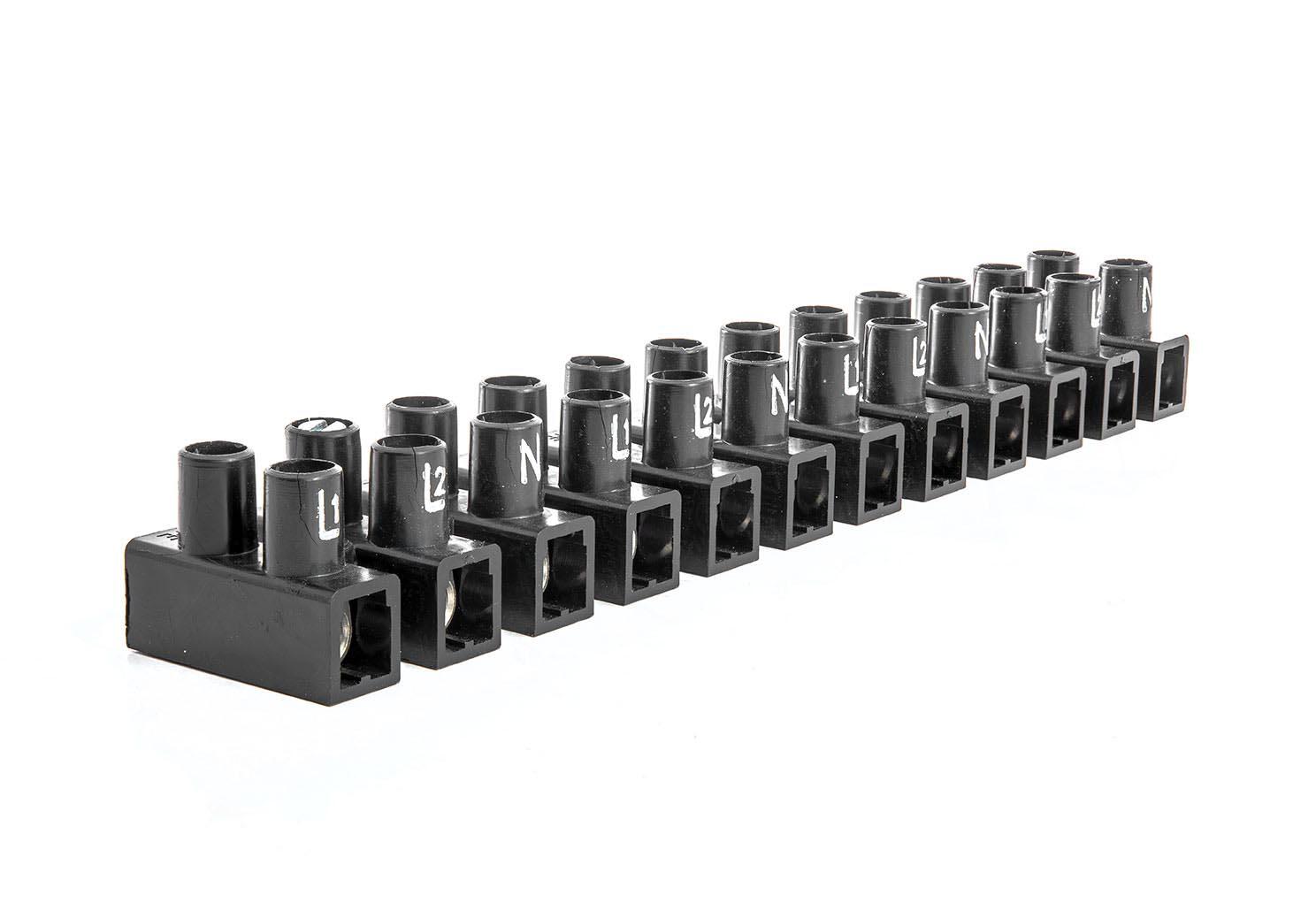

We apply customised labelling on our terminal blocks. They can be labelled directly on the terminal block, or on a labelling strip placed on top of the terminal block. In both cases, the labelling is heat-embossed and meets SEMKO’s requirements. It is also UV-resistant.
PROPERTIES
- -5°C to +150°C
- Up to 450 V
- Up to 40 A
- Up to 16 mm2

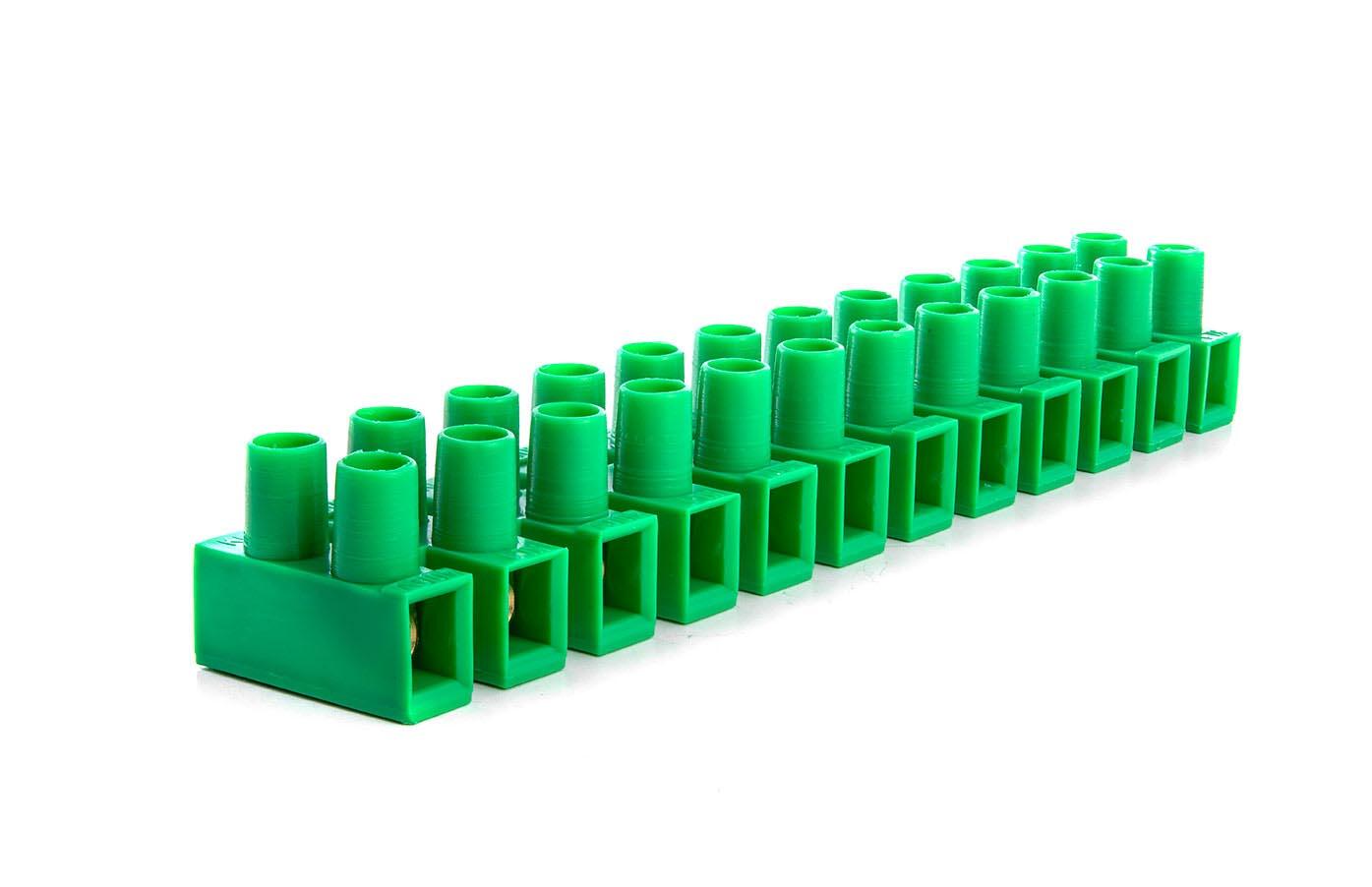

The terminal blocks are normally manufactured as 12-pole, but can also be supplied cut to 1–11 poles.
Specifications
| Cable area | Upp till 16 mm2 |
|---|---|
| Current | Upp till 40 A |
| Operating temperature | -5 °C till +150 °C |
|---|---|
| Voltage | Upp till 450 V |
