Accessories, terminal blocks

Here you will find a range of accessories for terminal blocks. Please feel free to contact us for more information.

Jumpers
Our HCL-series jumpers fit our terminal blocks and offer the potential for cross-connection short circuit between poles, as well as saving time when installing cable assemblies.

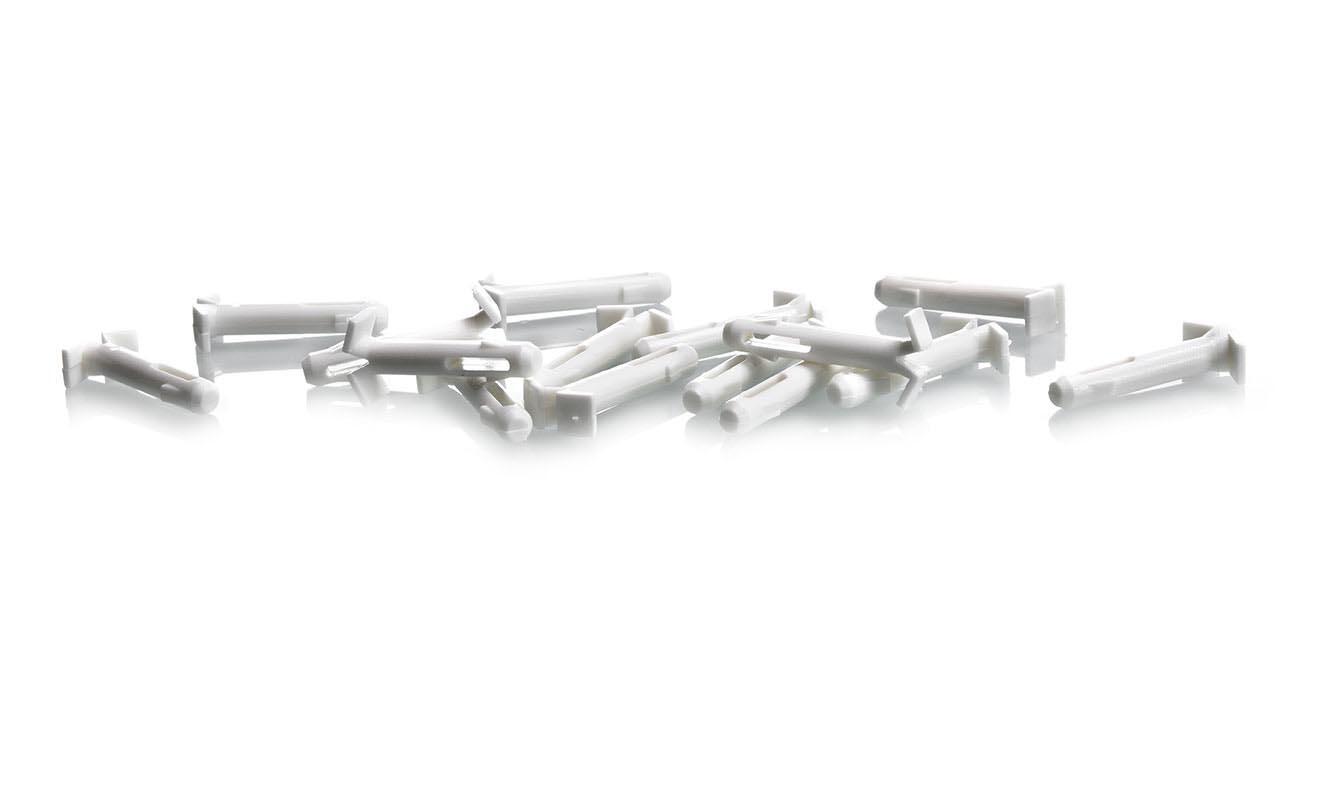

Fixing pins
Fixing pins are intended to be used as quick-attachments for terminal blocks on surfaces up to 1 mm thick. The fixing pins can be attached from both directions, i.e. also from above. They are well suited for those occasions when you cannot use screws or rivets that are conductive.

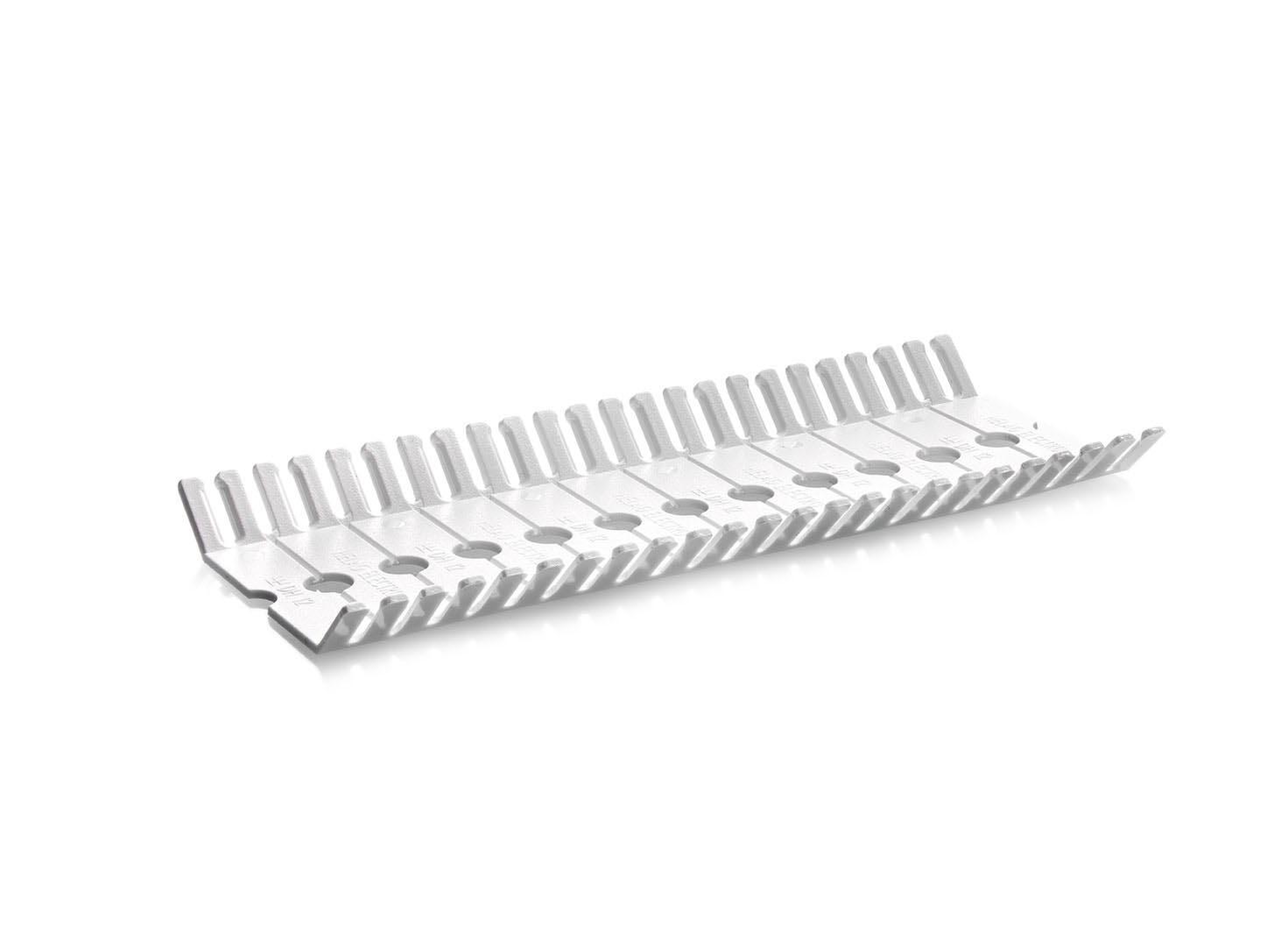

Cable grips
Cable grips are designed to prevent cable strands from coming into contact with uninsulated surfaces, and also serve as an insulating underlay. The cable grips are only supplied as a 12-pole version, but can easily be split into the desired number of poles as they are supplied with break-off points.

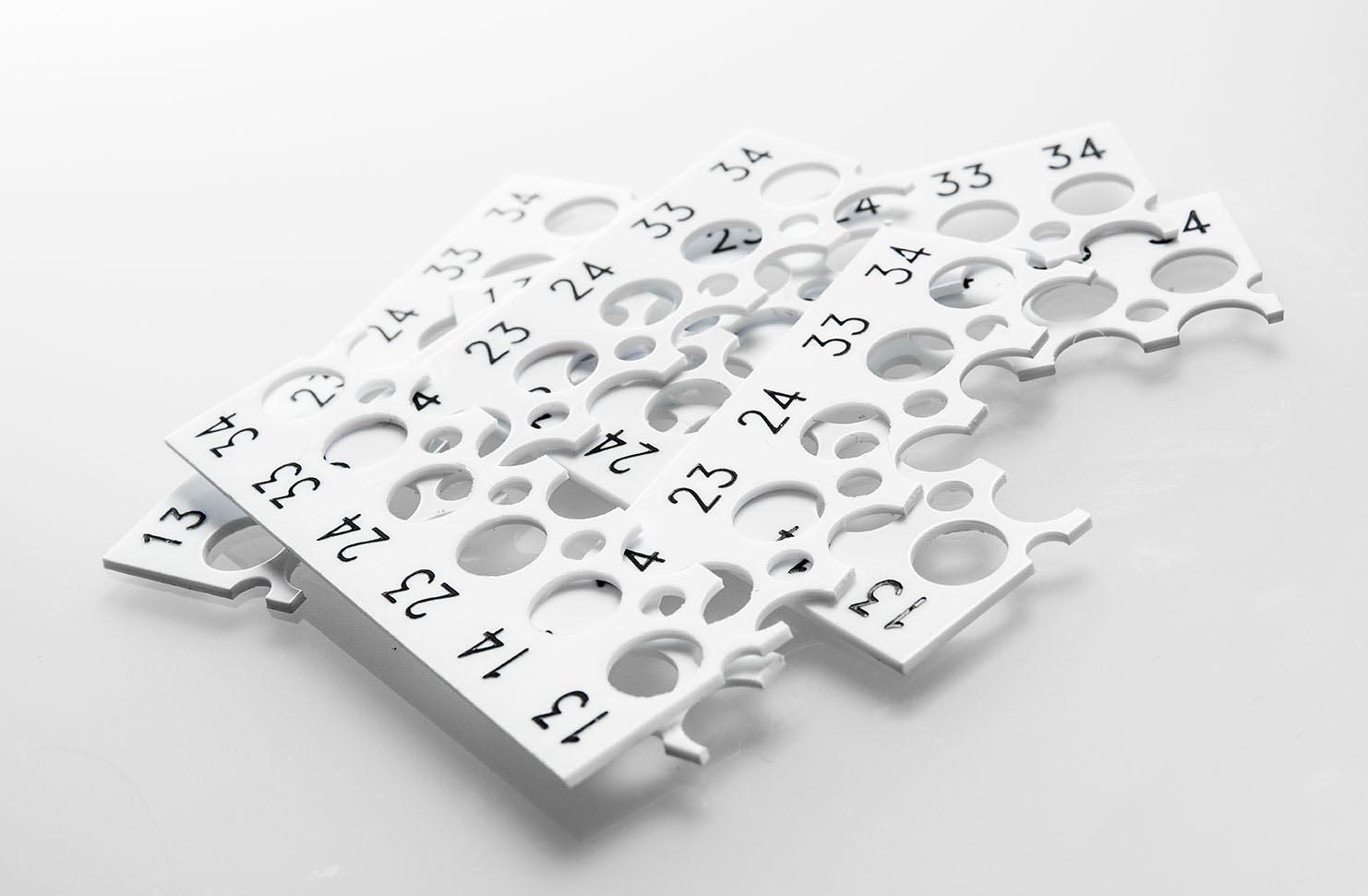

Labelling strips
Our labelling strips fit all of Helag’s terminal blocks and are mounted on top of the terminal block. They are made of white polystyrene. The marking is heat-sealed and can withstand the abrasion test, as well as being UV resistant. The strips are available for both standard and fully customised labels.

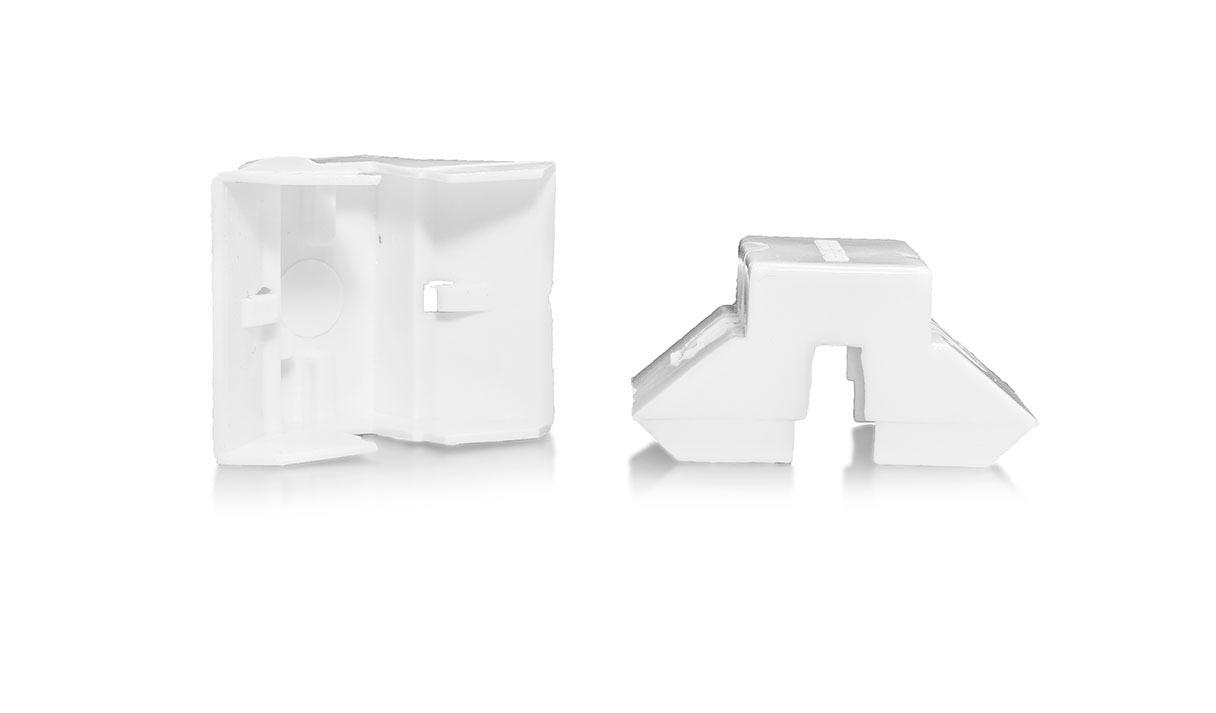

Terminal block lids
A terminal block lid is a simple and easy-to-fit touch cover for your terminal block. The terminal block lid is attached with gentle pressure and held in place with a snap-on attachment. The standard colour is white, but we can also supply it in black on request.

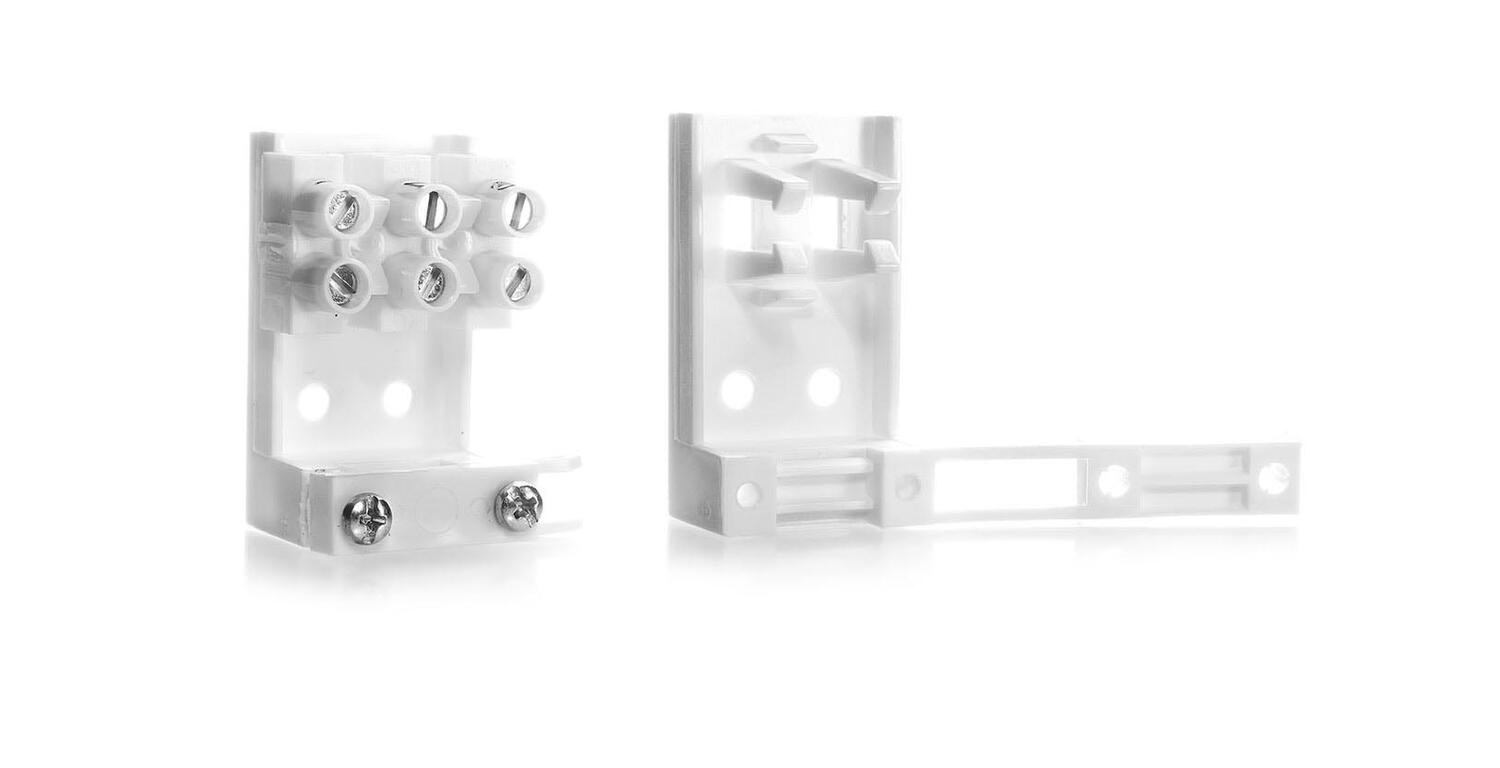

Quick-release terminal block attachment
Quick-release terminal block attachments are a simple solution for combining a terminal block with a strain relief. The terminal block is pressed firmly into the attachment, which is then pressed into pre-drilled holes in a chassis or sheet metal. Particularly suitable for lighting fixtures and appliance boxes. The quick-release terminal block attachment is supplied with screws for the strain relief.
