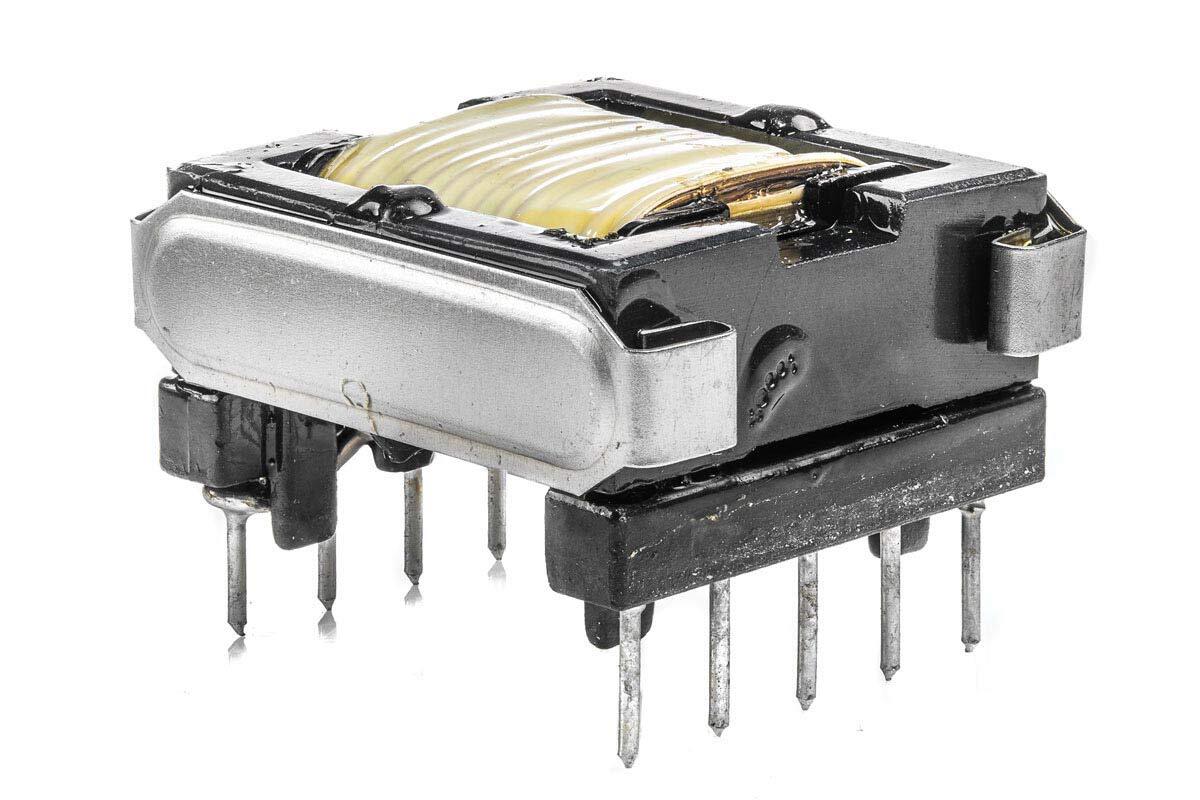

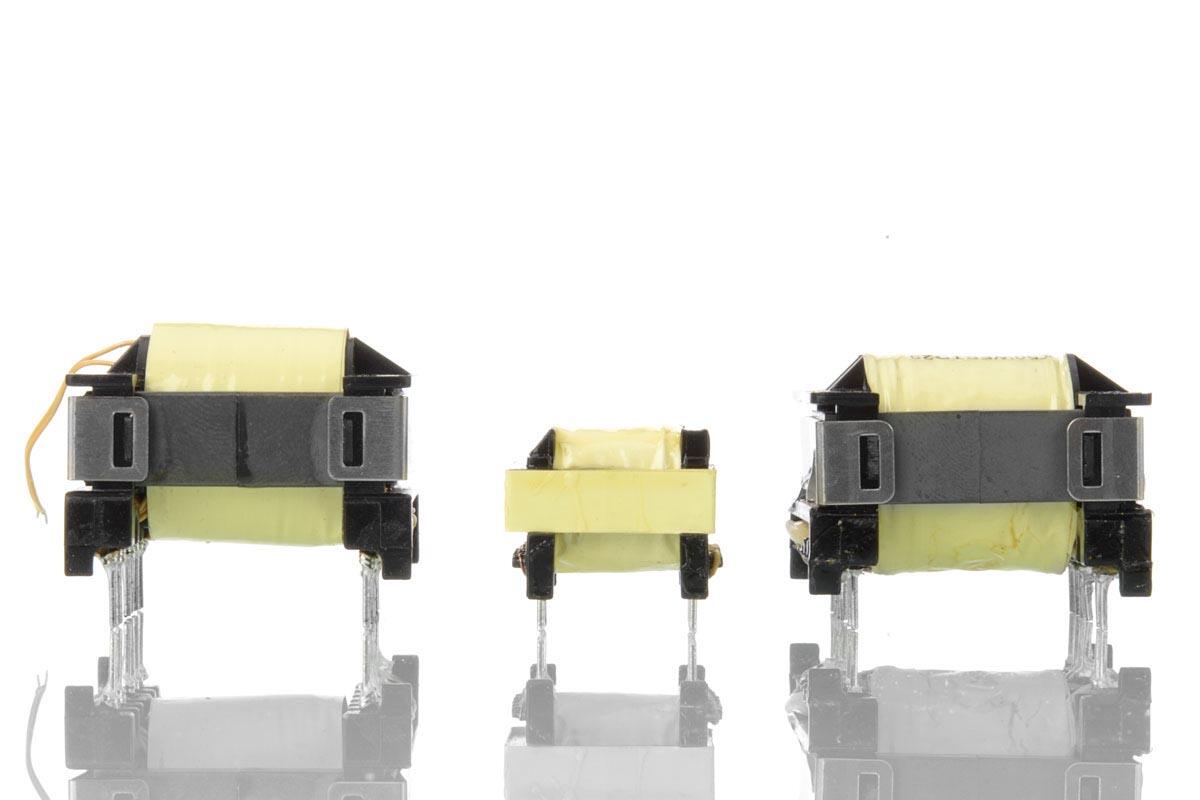

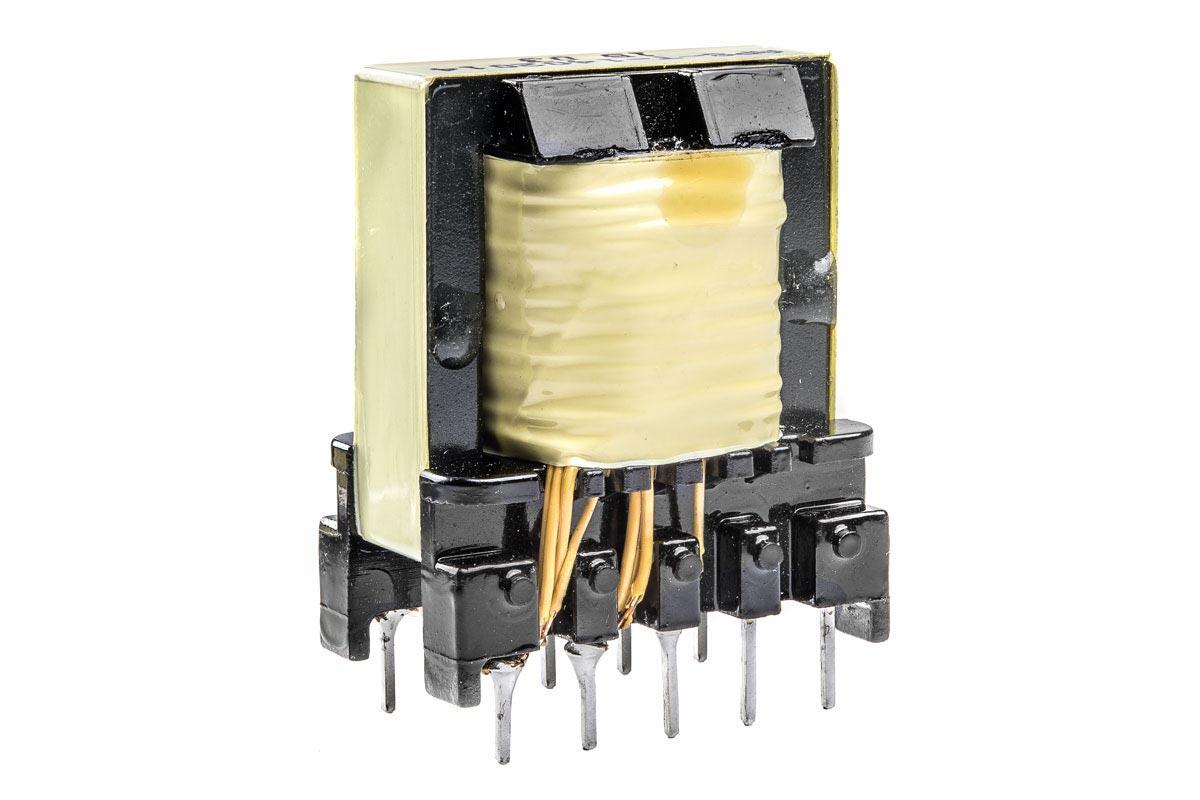

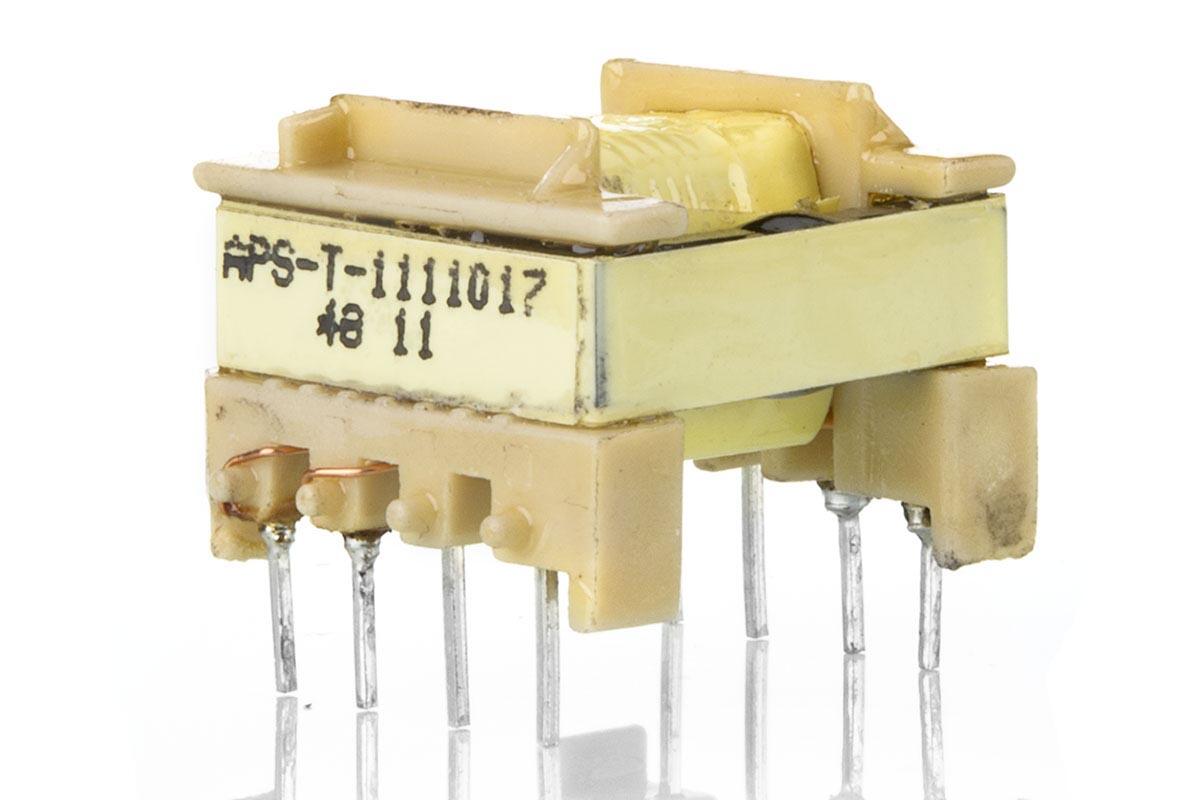

SMPS transformers
Suppliers: Hahn, Alpha Power, TPEG
- Compact design that saves space in the application
- Maximized energy efficiency for modern power systems
- Internationally approved materials and standards
- Customer-specific solutions
Switching Mode Power Supply (SMPS), or pulsed power supply, is a converter of electrical energy that works by means of a fast, electronically controlled switch chopping up the input voltage into short, high frequency pules.
These pulses are stored in a capacitor, and this entire process is controlled by a control circuit that continuously measures and adjusts switching to obtain the desired output voltage. Because the input voltage is chopped up into short pulses, a great deal of interference is created. This must be filtered to ensure that the output voltage is clean. This is a cost-effective solution that takes up relatively little space in the application.
PROPERTIES:
- 40 kHz–150 kHz
- Up to 95% efficiency
- Large input voltage range 85-285 VAC
- Insulation system UL 1446
- Standards EN 60950, EN 61 558-2-16
- Topologies: Fly Back, Forward and Push Pull
We also develop customised SMPS transformers in addition to these properties.
