Accessories – PTC

Condensate evaporators, thermostats and hygrostats with DIN clamp are compact accessories for control cabinets or electrical enclosures. PTC condensate evaporators are designed for automatic collection and evaporation of condensate, replacing collection tanks that have to be emptied manually. Thermostats with adjustable temperature settings are used to control heating and cooling devices and are available in different versions. The electronic hygrostat with frost protection activation is used to check the humidity level of the air in enclosures.

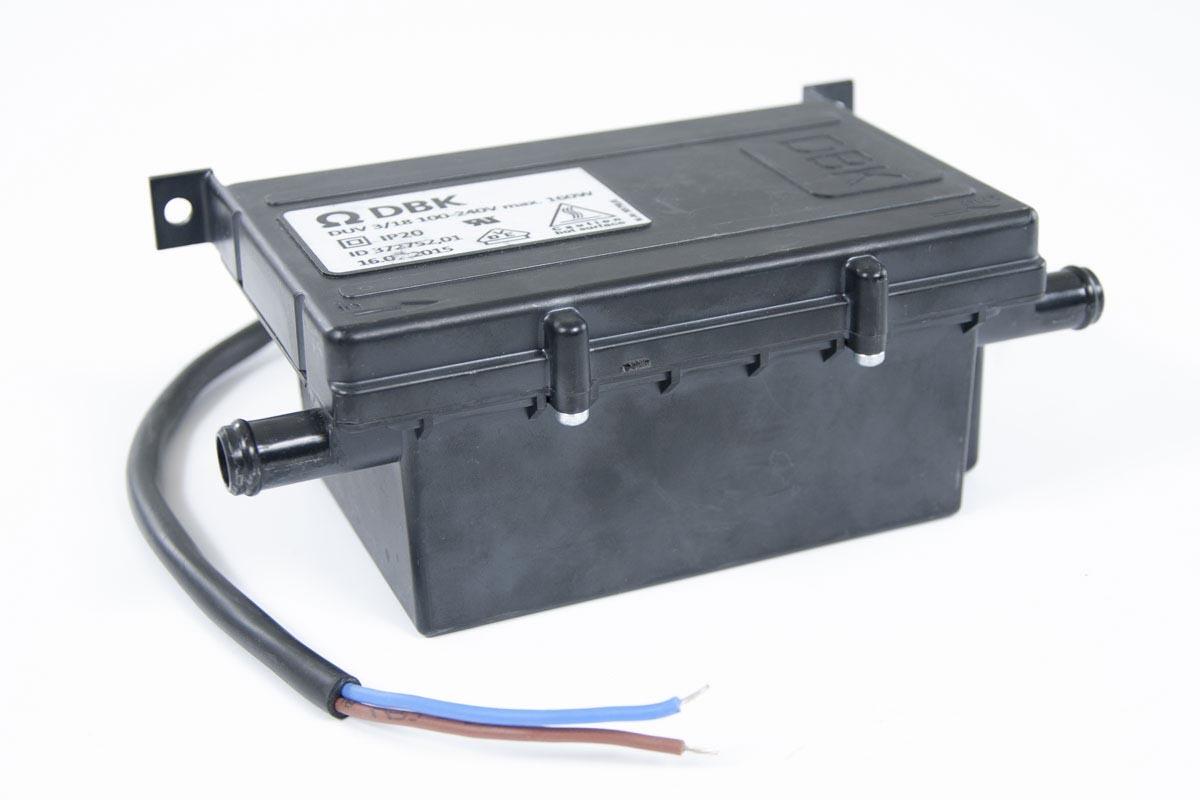

PTC condensing evaporators
•    Power: 90 W–200 W
•    Operating voltage 110 / 230 V
•    Evaporation rate up to 245 ml / h
•    Enclosed housing with integrated condensate collection tank
•    Maintenance-free, no drainage required
•    Simple installation through hose connection, mounting brackets, DIN clamp
•    CE, VDE, UL-approved

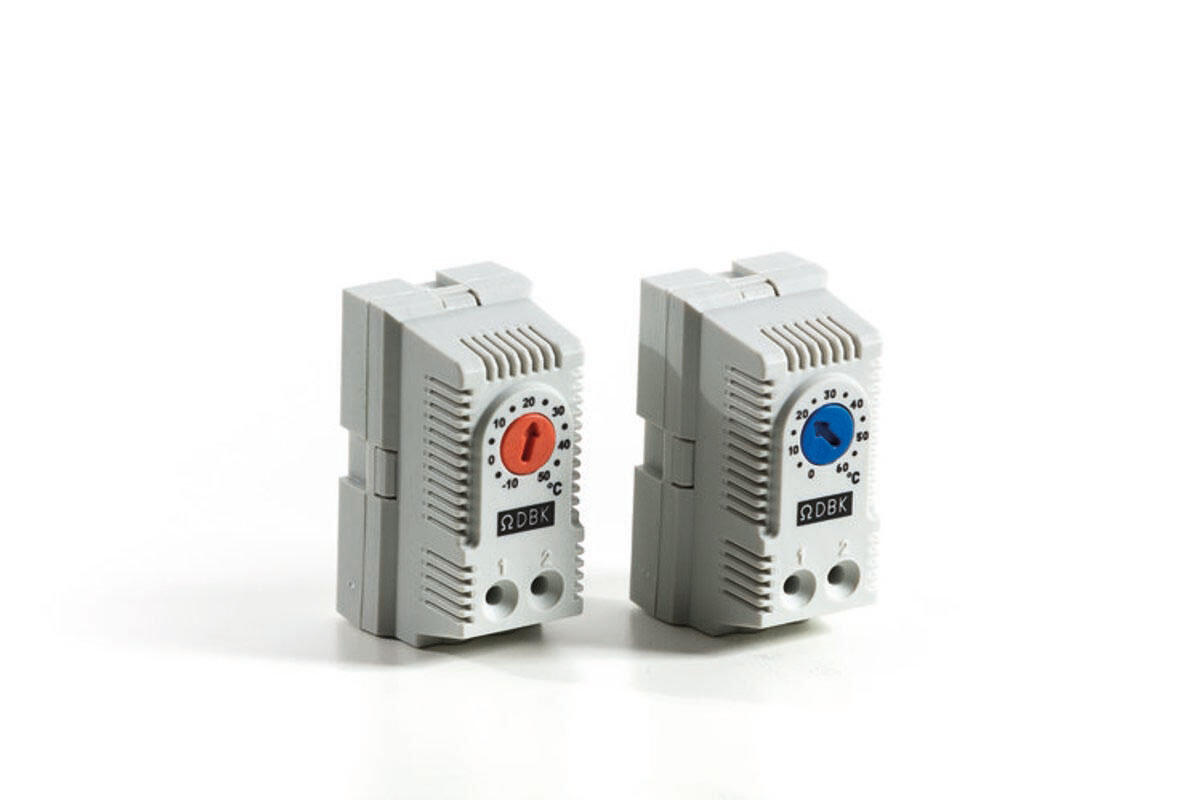

Thermostats T series
•    Operating voltage 12 / 24 V DC, 115–230 V AC
•    Two separate thermostats (normally closed or normally open)
•    Adjustable temperature control
•    Simple installation on DIN rail
•    CE, UL, CSA-approved

Thermostats Dualstat 2-in-1
•    Operating voltage 12 / 24 V DC, 100–240 V AC
•    Reliable bi-metal technology
•    Two separate thermostats in one housing (normally closed and normally open)
•    Adjustable temperature control
•    Simple installation on DIN rail
•    CE, UL, CSA-approved

Electronic hygrostat
•    Operating voltage 220–240 V AC
•    Setting in 5% RH range
•    Two-colour LED status display: operating mode / error
•    Activation of frost protection at 4°C (default)
•    Can operate in either NC (humidifying) or NO (dehumidifying) mode
•    Simple installation on DIN rail
•    CE-approved
